WOOD
maple:
oak:
ash:
STEEL
powder coated:

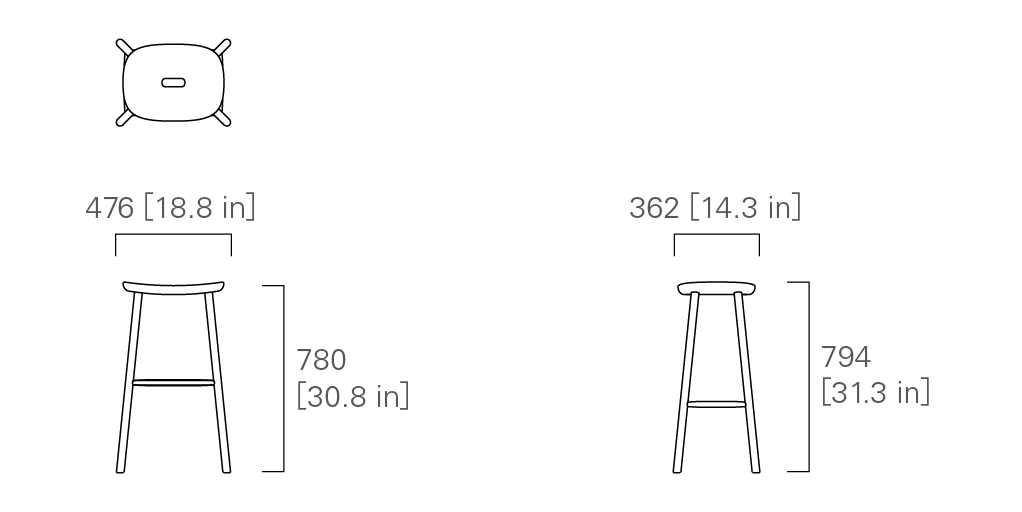

TECHNICAL DRAWINGS
DETAILS
- black or silver are the only selectable steel colors for NK-1.
PRODUCT No.
Steel black
- No.2857-22 maple: urethane finish, clear (C-0)
- No.2857-82 maple: urethane finish, natural black (NK-1)
- No.2877-22 oak: urethane finish, clear (C-0)
- No.2877-32 oak: urethane finish, whitish (NL-0)
- No.2877-82 oak: urethane finish, natural black (NK-1)
- No.2868-32 ash: urethane finish, whitish (NL-0)
- No.2868-82 ash: urethane finish, natural black (NK-1)
Steel green
- No.2857-23 maple: urethane finish, clear (C-0)
- No.2877-23 oak: urethane finish, clear (C-0)
- No.2877-33 oak: urethane finish, whitish (NL-0)
- No.2868-33 ash: urethane finish, whitish (NL-0)
Steel red
- No.2857-24 maple: urethane finish, clear (C-0)
- No.2877-24 oak: urethane finish, clear (C-0)
- No.2877-34 oak: urethane finish, whitish (NL-0)
- No.2868-34 ash: urethane finish, whitish (NL-0)
Steel silver
- No.2857-26 maple: urethane finish, clear (C-0)
- No.2857-86 maple: urethane finish, natural black (NK-1)
- No.2877-26 oak: urethane finish, clear (C-0)
- No.2877-36 oak: urethane finish, whitish (NL-0)
- No.2877-86 oak: urethane finish, natural black (NK-1)
- No.2868-36 ash: urethane finish, whitish (NL-0)
- No.2868-86 ash: urethane finish, natural black (NK-1)
PRODUCT SHEETS
2D&3D
save_alt DOWNLOAD ZIP
Please Indicate that you accepted the Terms of use.I have read and accepted the Terms of use *
ID and Password are required to download the 2D & 3D data.
Please fill in the necessary information here. You will receive an e-mail with the ID and password shortly.
ID and Password are required to download the 2D & 3D data.
Please fill in the necessary information here.
You will receive an e-mail with the ID and password shortly.
I have read and accepted the Terms of use *
Included Product(s)
- O3 STOOL High
Data format
2D data: DXF / 3D data: 3DS, DWG
